At One Point Sydney Electricians, our licensed team has completed hundreds of EV charger installations across Sydney’s diverse property landscape—from heritage terrace homes in the Inner West needing switchboard modernisations to waterfront apartments in Mosman and the North Shore. We provide upfront, transparent pricing and handle every step, from load calculations to final compliance certification.
Why EV Charger Installation Costs Vary Across Sydney
No two EV charger installations are identical. Whether you are living in your home long-term or preparing your property for sale in a competitive Sydney real estate market, upgrading your electrical infrastructure is one of the smartest property enhancements you can make.
Your property’s existing electrical system is the biggest cost variable. Homes built prior to 1990 frequently require a switchboard upgrade to safely support the continuous 32-amp electrical load of a fast Level 2 charger, adding $800 to $2,500 to the total scope. Cable distances also dictate material costs: runs under 15 metres keep pricing minimal, whereas complex routing or trenching across driveways adds $500 to $1,500.
Property type plays a vital role as well:
- Single-Family Homes: Standard installations in single-family garages typically cost between $1,500 and $2,500.
- Apartments & Strata Properties: Multi-dwelling units require body corporate approvals, shared infrastructure routing, and specialized Level 2 electrician services, typically ranging from $3,000 to $6,000+.
Complete Cost Breakdown: What You’ll Actually Pay
1. EV Charger Hardware (20%–35% of Total Cost)

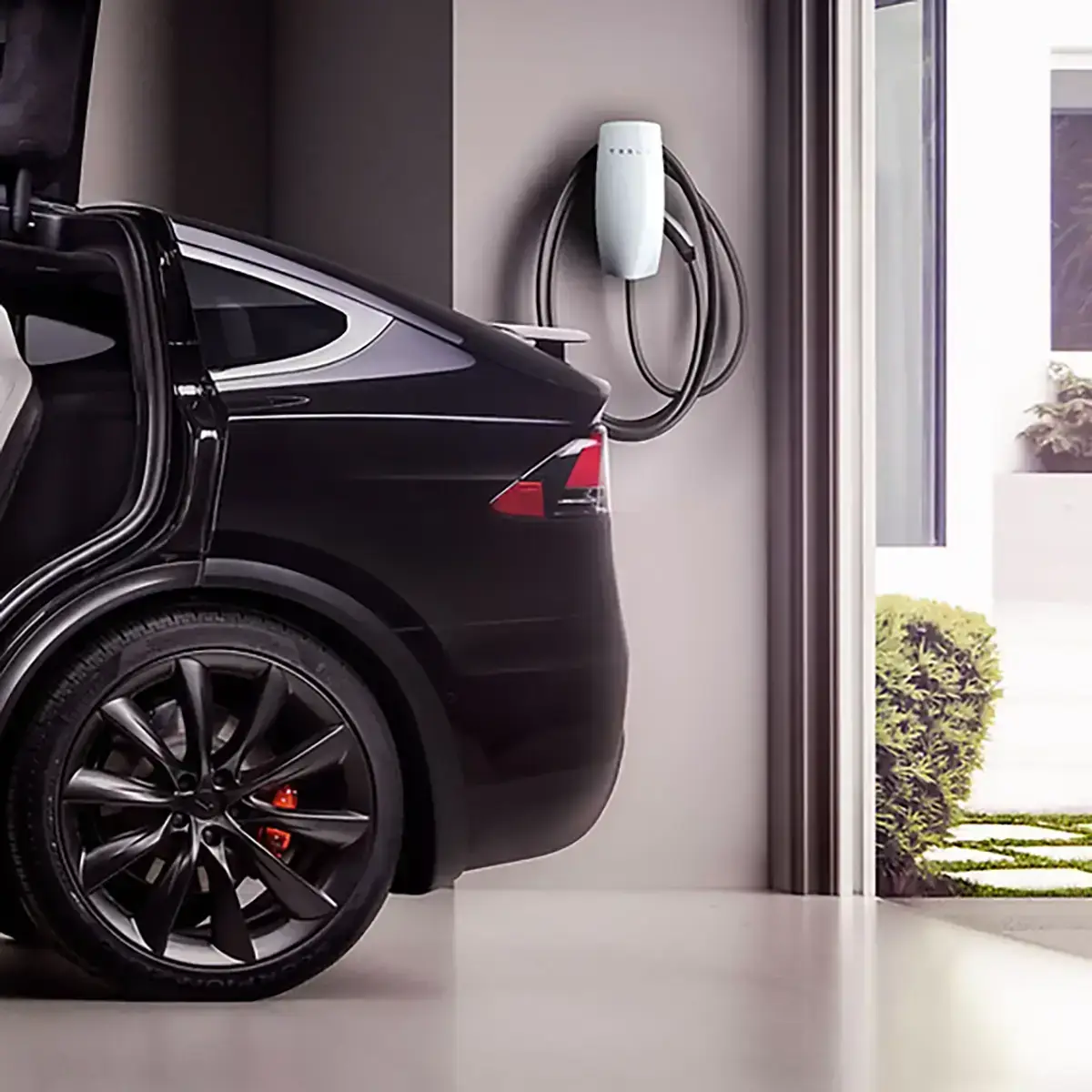

Level 2 AC Wallbox Chargers ($800–$2,000) are the industry standard for home and business use. Popular units like the Tesla Wall Connector (~$1,200) or Zappi (~$1,800) offer fast charging, smart app monitoring, and solar integration capabilities.
2. Professional Installation Labour (35%–50% of Total Cost)
Licensed electrician rates in Sydney typically range from $120 to $180 per hour. Standard installations (cable runs under 15 metres) cost $450–$1,500 in labour. Complex installations involving trenching, multi-phase wiring, or strata routing range from $1,800 to $3,000+.
3. Wiring & Circuit Protection (15%–25% of Total Cost)
Mandatory safety hardware including dedicated circuit breakers, heavy-duty cabling, conduit, and Residual Current Devices (RCDs) adds $300–$600 for standard distances, or up to $1,500 for extended runs.

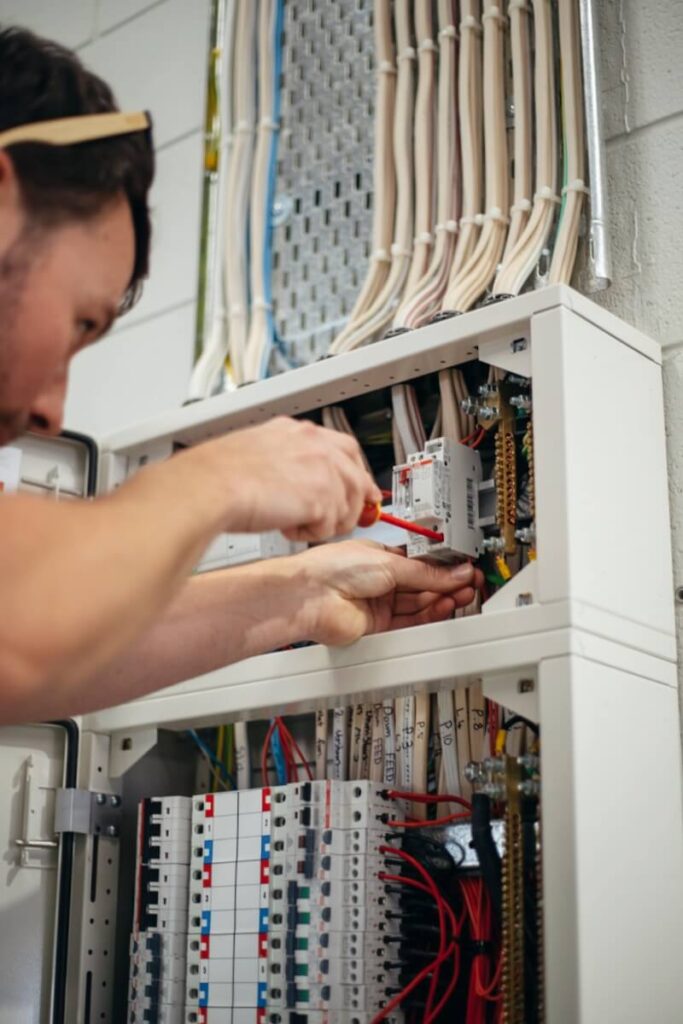

4. Switchboard & Capacity Upgrades (0%–40% of Total Cost)
Modern switchboards with spare capacity may require no upgrade ($0). However, homes with ceramic fuses or compact, undersized sub-panels need a full modern switchboard upgrade ($2,000–$4,000) to ensure fire safety and pass NSW compliance standards.
5. Permits & Compliance Certification (5%–10% of Total Cost)
Under NSW electrical regulations, all EV installations must be issued a Certificate of Compliance for Electrical Work (CCEW), costing between $150 and $400.
Real Sydney Installation Cost Examples
- Bondi Beach House (Standard Install): Modern panel, garage adjacent to switchboard, 10m cable run. Charger ($1,200) + installation ($1,000) + CCEW compliance ($200) = Total: $2,400
- Mosman Strata Apartment: Shared basement parking, 25m conduit run to dedicated bay. Smart charger ($1,500) + complex wiring ($1,800) + dedicated sub-circuit ($1,000) + strata documentation ($400) = Total: $4,700
- Parramatta Business (Dual Charger Setup): Two commercial Level 2 smart chargers ($3,000) + 3-phase wiring ($2,500) + switchboard modifications ($800) + permits ($300) = Total: $6,600
Hidden Costs and Common Surprises
- Asbestos Backing Boards: Pre-1990 Sydney homes often have asbestos switchboard backing panels. Safe licensed removal adds $1,000–$2,500 before electrical work can begin.
- 3-Phase Power Conversions: Converting a single-phase home to 3-phase power ($3,000–$6,000) allows ultra-fast 22kW charging, ideal for households with multiple EVs.
- Solar Diverter Capability: Adding solar integration wiring ($500–$1,000) allows smart chargers to direct free surplus solar energy straight into your vehicle battery.
How Rebates & Incentives Reduce Your Net Investment
While NSW does not offer a blanket residential state rebate, combining localized council grants, business programs, and off-peak tariffs drastically lowers your total cost:
- Federal DRIVEN Program (Businesses & Automotive): Claim up to $3,000 per charger plug (capped at $21,000 for hardware per site) for commercial installations.
- Randwick City Council: Offers a 25% rebate up to $500 for private single-family home installations, and up to $5,000 for shared strata property installations.
- City of Sydney & Inner West Grants: Provide $1,000 to $3,000 in sustainability funding for multi-unit building electrical upgrades.
- Off-Peak EV Tariffs: Retailers like Origin and AGL offer discounted overnight charging rates, saving $300–$600 per year in running costs.
Step-by-Step Guide to Getting Your EV Charger Installed
- Book a Free Site Inspection: A licensed electrician inspects your switchboard, measures cable routes, and verifies mains capacity.
- Select Your Charger: Choose a Level 2 wallbox featuring smart app controls and solar compatibility.
- Secure Strata / Council Approvals: Submit technical specs and load reports to your body corporate or council if required.
- Professional Installation: The electrician installs dedicated circuits, RCD protection, mounts the unit, and tests performance.
- Receive Compliance Certification: Obtain your official CCEW certificate to validate warranties and submit for available rebates.
Frequently Asked Questions (FAQs)
How much does a basic home EV charger installation cost in Sydney?
A standard single-family home installation typically costs between $1,500 and $2,500, including a quality Level 2 charger, wiring, professional installation, and compliance certification. Costs increase if switchboard upgrades or extended cabling are needed.
Do I need a Level 2 Electrician to install an EV charger?
A standard licensed electrician can perform internal wiring and wallbox mounting. However, if your installation requires upgrading your main power supply from the street, converting to 3-phase power, or working on network service lines, a certified Level 2 Electrician is legally required.
Will an EV charger upgrade increase my home’s property value?
Yes. As EV adoption rapidly accelerates across Sydney, buyers actively look for properties with modern electrical switchboards and dedicated EV charging capability, making it a high-return feature for homeowners prepping to sell.
Get an Upfront Quote for Your EV Charger Installation
Speak with Sydney’s trusted electrical experts. We’ll assess your switchboard and deliver a transparent, fixed quote.
